Templates

The customization of the Overcloud is done in a set of different yaml templates

Contrail Services customization ¶

vi ~/tripleo-heat-templates/environments/contrail-services.yaml

parameter_defaults:
  ContrailSettings:
    VROUTER_GATEWAY: 10.0.0.1
    # KEY1: value1
    # KEY2: value2

Contrail registry settings ¶

vi ~/tripleo-heat-templates/environments/contrail-services.yaml

Public Juniper registry

parameter_defaults:
  ContrailRegistry: hub.juniper.net/contrail
  ContrailRegistryUser: YOURUSER
  ContrailRegistryPassword: YOURPASSWORD

Insecure registry

parameter_defaults:
  ContrailRegistryInsecure: true
  DockerInsecureRegistryAddress: 10.87.64.32:5000,192.168.24.1:8787
  ContrailRegistry: 10.87.64.32:5000

Private secure registry

parameter_defaults:
  ContrailRegistryCertUrl: http://satellite.englab.juniper.net/pub/satellite.englab.juniper.net.crt
  ContrailRegistry: satellite.englab.juniper.net:5443

Contrail container image settings ¶

parameter_defaults:
  ContrailImageTag: queens-5.0-104-rhel-queens

Network customization ¶

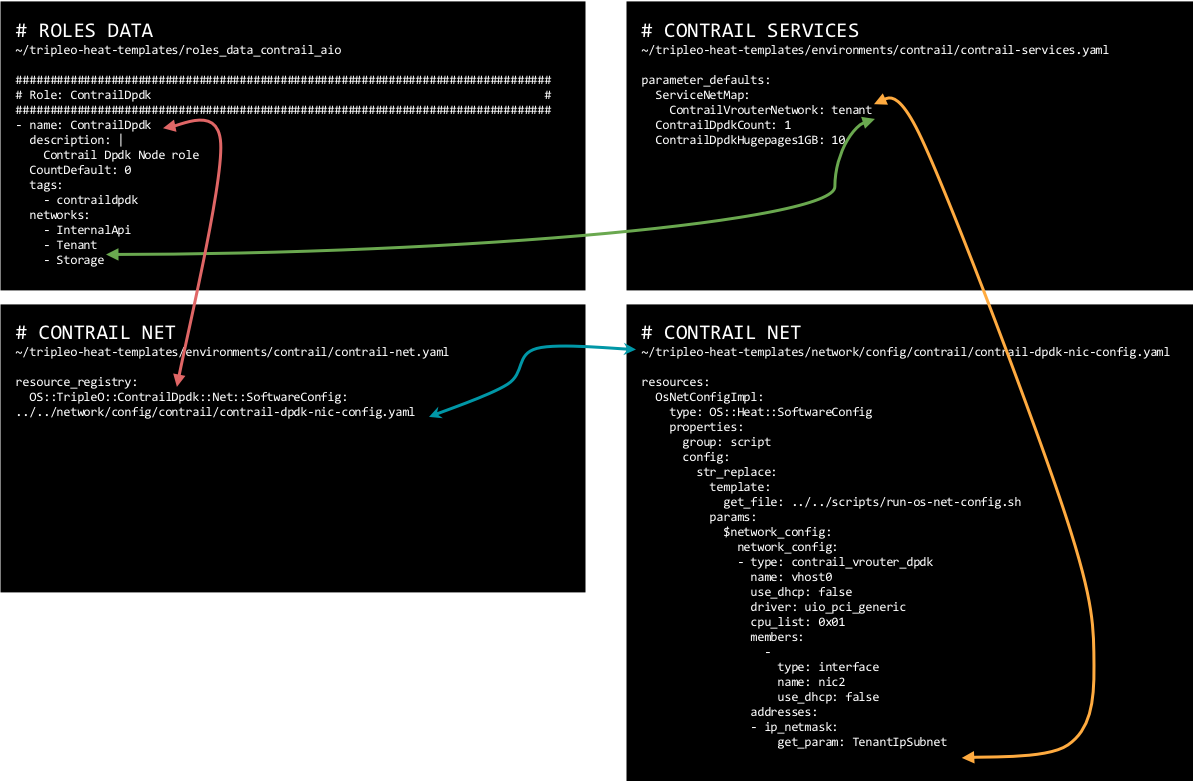

The depency of the different network related files is shown here:

In order to customize the network, different networks have to be defined and the Overcloud nodes NIC layout has to be configured. Tripleo supports a flexible way of customizing the network. In this example the following networks are used:

Network	Vlan	Overcloud Nodes
provisioning		All
internal_api	710	All
external_api	720	OpenStack CTRL
storage	740	OpenStack CTRL, Computes
storage_mgmt	750	OpenStack CTRL
tenant		Contrail CTRL, Computes

Network activation in roles_data ¶

The networks must be activated per role in the roles_data file:

vi ~/tripleo-heat-templates/roles_data_contrail_aio.yaml

OpenStack Controller ¶

###############################################################################
# Role: Controller                                                            #
###############################################################################
- name: Controller
  description: |
    Controller role that has all the controler services loaded and handles
    Database, Messaging and Network functions.
  CountDefault: 1
  tags:
    - primary
    - controller
  networks:
    - External
    - InternalApi
    - Storage
    - StorageMgmt

Compute Node ¶

###############################################################################
# Role: Compute                                                               #
###############################################################################
- name: Compute
  description: |
    Basic Compute Node role
  CountDefault: 1
  networks:
    - InternalApi
    - Tenant
    - Storage

Contrail Controller ¶

###############################################################################
# Role: ContrailController                                                    #
###############################################################################
- name: ContrailController
  description: |
    ContrailController role that has all the Contrail controler services loaded
    and handles config, control and webui functions
  CountDefault: 1
  tags:
    - primary
    - contrailcontroller
  networks:
    - InternalApi
    - Tenant

Compute DPDK ¶

###############################################################################
# Role: ContrailDpdk                                                          #
###############################################################################
- name: ContrailDpdk
  description: |
    Contrail Dpdk Node role
  CountDefault: 0
  tags:
    - contraildpdk
  networks:
    - InternalApi
    - Tenant
    - Storage

Compute SRIOV ¶

###############################################################################
# Role: ContrailSriov
###############################################################################
- name: ContrailSriov
  description: |
    Contrail Sriov Node role
  CountDefault: 0
  tags:
    - contrailsriov
  networks:
    - InternalApi
    - Tenant
    - Storage

Compute CSN ¶

###############################################################################
# Role: ContrailTsn
###############################################################################
- name: ContrailTsn
  description: |
    Contrail Tsn Node role
  CountDefault: 0
  tags:
    - contrailtsn
  networks:
    - InternalApi
    - Tenant
    - Storage

Network parameter configuration ¶

cat ~/tripleo-heat-templates/environments/contrail/contrail-net.yaml

resource_registry:
  OS::TripleO::Controller::Net::SoftwareConfig: ../../network/config/contrail/controller-nic-config.yaml
  OS::TripleO::ContrailController::Net::SoftwareConfig: ../../network/config/contrail/contrail-controller-nic-config.yaml
  OS::TripleO::ContrailControlOnly::Net::SoftwareConfig: ../../network/config/contrail/contrail-controller-nic-config.yaml
  OS::TripleO::Compute::Net::SoftwareConfig: ../../network/config/contrail/compute-nic-config.yaml
  OS::TripleO::ContrailDpdk::Net::SoftwareConfig: ../../network/config/contrail/contrail-dpdk-nic-config.yaml
  OS::TripleO::ContrailSriov::Net::SoftwareConfig: ../../network/config/contrail/contrail-sriov-nic-config.yaml
  OS::TripleO::ContrailTsn::Net::SoftwareConfig: ../../network/config/contrail/contrail-tsn-nic-config.yaml

parameter_defaults:
  # Customize all these values to match the local environment
  TenantNetCidr: 10.0.0.0/24
  InternalApiNetCidr: 10.1.0.0/24
  ExternalNetCidr: 10.2.0.0/24
  StorageNetCidr: 10.3.0.0/24
  StorageMgmtNetCidr: 10.4.0.0/24
  # CIDR subnet mask length for provisioning network
  ControlPlaneSubnetCidr: '24'
  # Allocation pools
  TenantAllocationPools: [{'start': '10.0.0.10', 'end': '10.0.0.200'}]
  InternalApiAllocationPools: [{'start': '10.1.0.10', 'end': '10.1.0.200'}]
  ExternalAllocationPools: [{'start': '10.2.0.10', 'end': '10.2.0.200'}]
  StorageAllocationPools: [{'start': '10.3.0.10', 'end': '10.3.0.200'}]
  StorageMgmtAllocationPools: [{'start': '10.4.0.10', 'end': '10.4.0.200'}]
  # Routes
  ControlPlaneDefaultRoute: 192.168.24.1
  InternalApiDefaultRoute: 10.1.0.1
  ExternalInterfaceDefaultRoute: 10.2.0.1
  # Vlans
  InternalApiNetworkVlanID: 710
  ExternalNetworkVlanID: 720
  StorageNetworkVlanID: 730
  StorageMgmtNetworkVlanID: 740
  TenantNetworkVlanID: 3211
  # Services
  EC2MetadataIp: 192.168.24.1  # Generally the IP of the Undercloud
  DnsServers: ["172.21.200.60"]
  NtpServer: 10.0.0.1

Network interface configuration ¶

There are NIC configuration files per role.

cd ~/tripleo-heat-templates/network/config/contrail

OpenStack Controller ¶

heat_template_version: queens

description: >
  Software Config to drive os-net-config to configure multiple interfaces
  for the compute role. This is an example for a Nova compute node using
  Contrail vrouter and the vhost0 interface.

parameters:
  ControlPlaneIp:
    default: ''
    description: IP address/subnet on the ctlplane network
    type: string
  ExternalIpSubnet:
    default: ''
    description: IP address/subnet on the external network
    type: string
  InternalApiIpSubnet:
    default: ''
    description: IP address/subnet on the internal_api network
    type: string
  InternalApiDefaultRoute: # Not used by default in this template
    default: '10.0.0.1'
    description: The default route of the internal api network.
    type: string
  StorageIpSubnet:
    default: ''
    description: IP address/subnet on the storage network
    type: string
  StorageMgmtIpSubnet:
    default: ''
    description: IP address/subnet on the storage_mgmt network
    type: string
  TenantIpSubnet:
    default: ''
    description: IP address/subnet on the tenant network
    type: string
  ManagementIpSubnet: # Only populated when including environments/network-management.yaml
    default: ''
    description: IP address/subnet on the management network
    type: string
  ExternalNetworkVlanID:
    default: 10
    description: Vlan ID for the external network traffic.
    type: number
  InternalApiNetworkVlanID:
    default: 20
    description: Vlan ID for the internal_api network traffic.
    type: number
  StorageNetworkVlanID:
    default: 30
    description: Vlan ID for the storage network traffic.
    type: number
  StorageMgmtNetworkVlanID:
    default: 40
    description: Vlan ID for the storage mgmt network traffic.
    type: number
  TenantNetworkVlanID:
    default: 50
    description: Vlan ID for the tenant network traffic.
    type: number
  ManagementNetworkVlanID:
    default: 60
    description: Vlan ID for the management network traffic.
    type: number
  ControlPlaneSubnetCidr: # Override this via parameter_defaults
    default: '24'
    description: The subnet CIDR of the control plane network.
    type: string
  ControlPlaneDefaultRoute: # Override this via parameter_defaults
    description: The default route of the control plane network.
    type: string
  ExternalInterfaceDefaultRoute: # Not used by default in this template
    default: '10.0.0.1'
    description: The default route of the external network.
    type: string
  ManagementInterfaceDefaultRoute: # Commented out by default in this template
    default: unset
    description: The default route of the management network.
    type: string
  DnsServers: # Override this via parameter_defaults
    default: []
    description: A list of DNS servers (2 max for some implementations) that will be added to resolv.conf.
    type: comma_delimited_list
  EC2MetadataIp: # Override this via parameter_defaults
    description: The IP address of the EC2 metadata server.
    type: string

resources:
  OsNetConfigImpl:
    type: OS::Heat::SoftwareConfig
    properties:
      group: script
      config:
        str_replace:
          template:
            get_file: ../../scripts/run-os-net-config.sh
          params:
            $network_config:
              network_config:
              - type: interface
                name: nic1
                use_dhcp: false
                dns_servers:
                  get_param: DnsServers
                addresses:
                - ip_netmask:
                    list_join:
                      - '/'
                      - - get_param: ControlPlaneIp
                        - get_param: ControlPlaneSubnetCidr
                routes:
                - ip_netmask: 169.254.169.254/32
                  next_hop:
                    get_param: EC2MetadataIp
                - default: true
                  next_hop:
                    get_param: ControlPlaneDefaultRoute
              - type: vlan
                vlan_id:
                  get_param: InternalApiNetworkVlanID
                device: nic1
                addresses:
                - ip_netmask:
                    get_param: InternalApiIpSubnet
              - type: vlan
                vlan_id:
                  get_param: ExternalNetworkVlanID
                device: nic1
                addresses:
                - ip_netmask:
                    get_param: ExternalIpSubnet
              - type: vlan
                vlan_id:
                  get_param: StorageNetworkVlanID
                device: nic1
                addresses:
                - ip_netmask:
                    get_param: StorageIpSubnet
              - type: vlan
                vlan_id:
                  get_param: StorageMgmtNetworkVlanID
                device: nic1
                addresses:
                - ip_netmask:
                    get_param: StorageMgmtIpSubnet

outputs:
  OS::stack_id:
    description: The OsNetConfigImpl resource.
    value:
      get_resource: OsNetConfigImpl

Contrail Controller ¶

heat_template_version: queens

description: >
  Software Config to drive os-net-config to configure multiple interfaces
  for the compute role. This is an example for a Nova compute node using
  Contrail vrouter and the vhost0 interface.

parameters:
  ControlPlaneIp:
    default: ''
    description: IP address/subnet on the ctlplane network
    type: string
  ExternalIpSubnet:
    default: ''
    description: IP address/subnet on the external network
    type: string
  InternalApiIpSubnet:
    default: ''
    description: IP address/subnet on the internal_api network
    type: string
  InternalApiDefaultRoute: # Not used by default in this template
    default: '10.0.0.1'
    description: The default route of the internal api network.
    type: string
  StorageIpSubnet:
    default: ''
    description: IP address/subnet on the storage network
    type: string
  StorageMgmtIpSubnet:
    default: ''
    description: IP address/subnet on the storage_mgmt network
    type: string
  TenantIpSubnet:
    default: ''
    description: IP address/subnet on the tenant network
    type: string
  ManagementIpSubnet: # Only populated when including environments/network-management.yaml
    default: ''
    description: IP address/subnet on the management network
    type: string
  ExternalNetworkVlanID:
    default: 10
    description: Vlan ID for the external network traffic.
    type: number
  InternalApiNetworkVlanID:
    default: 20
    description: Vlan ID for the internal_api network traffic.
    type: number
  StorageNetworkVlanID:
    default: 30
    description: Vlan ID for the storage network traffic.
    type: number
  StorageMgmtNetworkVlanID:
    default: 40
    description: Vlan ID for the storage mgmt network traffic.
    type: number
  TenantNetworkVlanID:
    default: 50
    description: Vlan ID for the tenant network traffic.
    type: number
  ManagementNetworkVlanID:
    default: 60
    description: Vlan ID for the management network traffic.
    type: number
  ControlPlaneSubnetCidr: # Override this via parameter_defaults
    default: '24'
    description: The subnet CIDR of the control plane network.
    type: string
  ControlPlaneDefaultRoute: # Override this via parameter_defaults
    description: The default route of the control plane network.
    type: string
  ExternalInterfaceDefaultRoute: # Not used by default in this template
    default: '10.0.0.1'
    description: The default route of the external network.
    type: string
  ManagementInterfaceDefaultRoute: # Commented out by default in this template
    default: unset
    description: The default route of the management network.
    type: string
  DnsServers: # Override this via parameter_defaults
    default: []
    description: A list of DNS servers (2 max for some implementations) that will be added to resolv.conf.
    type: comma_delimited_list
  EC2MetadataIp: # Override this via parameter_defaults
    description: The IP address of the EC2 metadata server.
    type: string

resources:
  OsNetConfigImpl:
    type: OS::Heat::SoftwareConfig
    properties:
      group: script
      config:
        str_replace:
          template:
            get_file: ../../scripts/run-os-net-config.sh
          params:
            $network_config:
              network_config:
              - type: interface
                name: nic1
                use_dhcp: false
                dns_servers:
                  get_param: DnsServers
                addresses:
                - ip_netmask:
                    list_join:
                      - '/'
                      - - get_param: ControlPlaneIp
                        - get_param: ControlPlaneSubnetCidr
                routes:
                - ip_netmask: 169.254.169.254/32
                  next_hop:
                    get_param: EC2MetadataIp
                - default: true
                  next_hop:
                    get_param: ControlPlaneDefaultRoute
              - type: vlan
                vlan_id:
                  get_param: InternalApiNetworkVlanID
                device: nic1
                addresses:
                - ip_netmask:
                    get_param: InternalApiIpSubnet
              - type: interface
                name: nic2
                use_dhcp: false
                addresses:
                - ip_netmask:
                    get_param: TenantIpSubnet

outputs:
  OS::stack_id:
    description: The OsNetConfigImpl resource.
    value:
      get_resource: OsNetConfigImpl

Compute Node ¶

heat_template_version: queens

description: >
  Software Config to drive os-net-config to configure multiple interfaces
  for the compute role. This is an example for a Nova compute node using
  Contrail vrouter and the vhost0 interface.

parameters:
  ControlPlaneIp:
    default: ''
    description: IP address/subnet on the ctlplane network
    type: string
  ExternalIpSubnet:
    default: ''
    description: IP address/subnet on the external network
    type: string
  InternalApiIpSubnet:
    default: ''
    description: IP address/subnet on the internal_api network
    type: string
  InternalApiDefaultRoute: # Not used by default in this template
    default: '10.0.0.1'
    description: The default route of the internal api network.
    type: string
  StorageIpSubnet:
    default: ''
    description: IP address/subnet on the storage network
    type: string
  StorageMgmtIpSubnet:
    default: ''
    description: IP address/subnet on the storage_mgmt network
    type: string
  TenantIpSubnet:
    default: ''
    description: IP address/subnet on the tenant network
    type: string
  ManagementIpSubnet: # Only populated when including environments/network-management.yaml
    default: ''
    description: IP address/subnet on the management network
    type: string
  ExternalNetworkVlanID:
    default: 10
    description: Vlan ID for the external network traffic.
    type: number
  InternalApiNetworkVlanID:
    default: 20
    description: Vlan ID for the internal_api network traffic.
    type: number
  StorageNetworkVlanID:
    default: 30
    description: Vlan ID for the storage network traffic.
    type: number
  StorageMgmtNetworkVlanID:
    default: 40
    description: Vlan ID for the storage mgmt network traffic.
    type: number
  TenantNetworkVlanID:
    default: 50
    description: Vlan ID for the tenant network traffic.
    type: number
  ManagementNetworkVlanID:
    default: 60
    description: Vlan ID for the management network traffic.
    type: number
  ControlPlaneSubnetCidr: # Override this via parameter_defaults
    default: '24'
    description: The subnet CIDR of the control plane network.
    type: string
  ControlPlaneDefaultRoute: # Override this via parameter_defaults
    description: The default route of the control plane network.
    type: string
  ExternalInterfaceDefaultRoute: # Not used by default in this template
    default: '10.0.0.1'
    description: The default route of the external network.
    type: string
  ManagementInterfaceDefaultRoute: # Commented out by default in this template
    default: unset
    description: The default route of the management network.
    type: string
  DnsServers: # Override this via parameter_defaults
    default: []
    description: A list of DNS servers (2 max for some implementations) that will be added to resolv.conf.
    type: comma_delimited_list
  EC2MetadataIp: # Override this via parameter_defaults
    description: The IP address of the EC2 metadata server.
    type: string

resources:
  OsNetConfigImpl:
    type: OS::Heat::SoftwareConfig
    properties:
      group: script
      config:
        str_replace:
          template:
            get_file: ../../scripts/run-os-net-config.sh
          params:
            $network_config:
              network_config:
              - type: interface
                name: nic1
                use_dhcp: false
                dns_servers:
                  get_param: DnsServers
                addresses:
                - ip_netmask:
                    list_join:
                      - '/'
                      - - get_param: ControlPlaneIp
                        - get_param: ControlPlaneSubnetCidr
                routes:
                - ip_netmask: 169.254.169.254/32
                  next_hop:
                    get_param: EC2MetadataIp
                - default: true
                  next_hop:
                    get_param: ControlPlaneDefaultRoute
              - type: vlan
                vlan_id:
                  get_param: InternalApiNetworkVlanID
                device: nic1
                addresses:
                - ip_netmask:
                    get_param: InternalApiIpSubnet
              - type: vlan
                vlan_id:
                  get_param: StorageNetworkVlanID
                device: nic1
                addresses:
                - ip_netmask:
                    get_param: StorageIpSubnet
              - type: contrail_vrouter
                name: vhost0
                use_dhcp: false
                members:
                  -
                    type: interface
                    name: nic2
                    use_dhcp: false
                addresses:
                - ip_netmask:
                    get_param: TenantIpSubnet

outputs:
  OS::stack_id:
    description: The OsNetConfigImpl resource.
    value:
      get_resource: OsNetConfigImpl

Advanced scenarios ¶

Remote Compute
